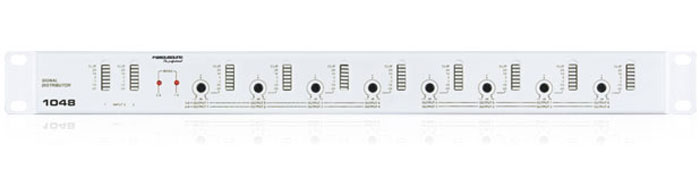

FAMOUSOUND 1048音频分配器器
HIFI音质设计!
>> 信噪比宽电压开关电源供电;
>> 采用“OPA2604"运放,音质扎实;
>> 采用ELNA®音频电容及全铜脚金属膜电阻;
>> 接插件采用NEUTRIK®品牌,稳定可靠;
>> AI、SMD等自动化制成性;
>> 镀锌钣金机箱,厚铝合金面板,7段VU电平指示;
参数表
信噪比S/N rate (A weight): >100dB |
|
频响Frequency response: 20Hz-20kHz ±0.5dB |
|
总谐波失真THD%: <0.03% |
|
动态范围Dynamic range: 118dB |
|
工作模式mode: 2 x4(2 channel) or 1x8(1 channel) |
|
备注: 1、Other data is tested under Q/SAE 1-2005 standard。 |
|
2、SAE reserves the right to make changes in specification without prior notice. |
|
3、The final specification is subject to the user manual. |
