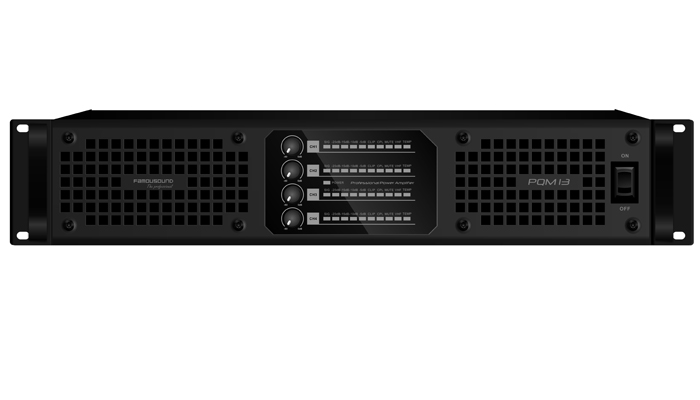

FAMOUSOUND PQM系列PQM8/PQM13前面板

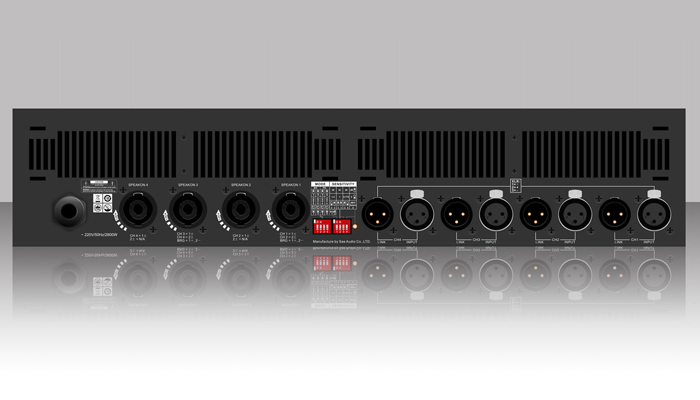

FAMOUSOUND PQM系列PQM8/PQM13后面板





PQM series

The PQM series of power amplifiers represents FAMOUSOUND Audio flagship series on the 4-channel SMPS power amplifier range.Featuring the most advanced technologies on audio power amplification developed by FAMOUSOUND Audio Research and Development laboratories during more than 15 years, the PQM amplifiers are able to deliver an enormous power density (2500W per channel @ 2Ω with the highest power model PQM13) with an unprecedented sonic quality from a very lightweight 2 rack-unit amplifier. This great performance and extreme efficiency, achieved through its advanced Regulated SMPS power supply and FAMOUSOUND Audio patented Class I™ power modules, turns the PQM amplifier series in the 4-channel industry standard for world-class pro-touring sound reinforcement applications.

Features

• FAMOUSOUND Audio’s renowned Regulated SMPS power supply.
• High efficiency Class I™ power modules.
• Highly sensitive CMRR balanced inputs for improved noise rejection.
• Top electronic elements for a superior sonic quality.
• Maximum stability at continuous full-power on 2Ω loads.
• XLR input and signal link connectors.
• SpeakON NL4 and binding post output connectors.
• Input sensitivity selector on the back panel (26dB / 28dB / 32dB / 1.4v / 1v / 0.775v).
• Routing mode selector on the back panel (stereo / bridge-parallel).
• Channel independent temperature, protection, VHF and clip warning indicators on the front panel.
• Channel independent -5dB/-10dB/-15dB/-20dB/signal presence and mute indicators on the front panel.
• Power and bridge/parallel indicators on the front panel.
• Low unit weight (15.7kg on the highest power model PQM13).

Applications

• Mid and big world-class pro-touring applications.
• Mid and big sized clubs and installations with high power density requirements.
• Multi-way speakers power amplification.
• Line array and big sized systems power amplification.
• Professional rental industry.

Specifications

Model                    PQM8                                                               PQM13

Output power    (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)

8Ω Stereo             800W x4                                                     1300W x4

4Ω Stereo              1400W x4                                                     2100W x4

2Ω Stereo               1600W x4                                                     2500W x4

8Ω Bridge                 2800W x2                                                     4200W x2

4Ω Bridge           3200W x2                                                     5000W x2

Other specifications

Frequency Response    20Hz – 20kHz, +0/-1.5dB             20Hz – 20kHz, +0/-1.5dB

THD+N                            ≤ 0.05%                                             ≤ 0.05%

S/N Rate                    ≥ 80dB                                             ≥ 80dB

Damping Factor            ≥ 800                                                     ≥ 800

Input Sensitivity  0.775v / 1v / 1.4v / 38dB / 32dB / 26dB     0.775v / 1v / 1.4v / 38dB / 32dB / 26dB

Input Impedance (bal/unbal)  20kΩ / 10kΩ                             20kΩ / 10kΩ

Voltage Gain                                 40.3dB                                     42.3dB

Cooling Air flow from front to rear

Dimension / Weight

Product Dimensions (mm) 483 x 448 x 89                      483 x 448 x 89

Packing Dimensions (mm) 595 x 565 x 170                      595 x 565 x 170



Remark：
1、Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
2、Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.

3、FAMOUSOUND reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
